รอกโซ่ไฟฟ้า "Black Bear"
"BLACK BEAR"
E. Chain Hoist
YSL-050/YSL-100
"Black Bear"
รอกโซ่ไฟฟ้า 0.5T / 1T
1 สปีด & 2 สปีด
YSS-200
"Black Bear"
รอกโซ่ไฟฟ้า 2T (1fall)
1 สปีด & 2 สปีด
YSS-500
"Black Bear"
รอกโซ่ไฟฟ้า 5T (2falls)
1 สปีด & 2 สปีด

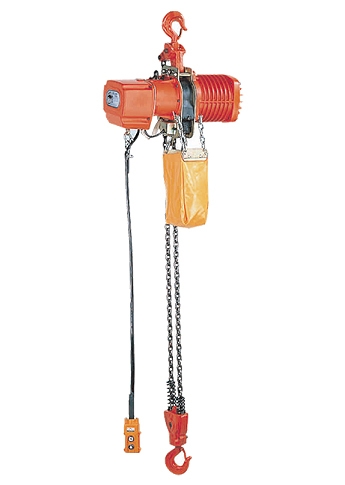

YSL-200
"Black Bear"
รอกโซ่ไฟฟ้า 2T (2falls)
1 สปีด & 2 สปีด
YSS-300
"Black Bear"
รอกโซ่ไฟฟ้า 3T (2falls)
1 สปีด & 2 สปีด
YSS-1000
"Black Bear"
รอกโซ่ไฟฟ้า 10T (4falls)
1 สปีด & 2 สปีด

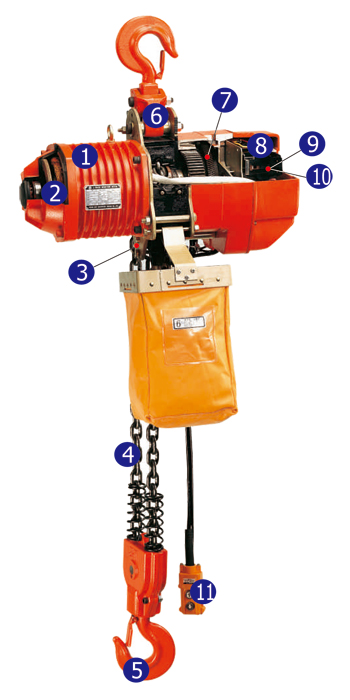

Product Description
1. Motor Housing
- Aluminum alloy casting, features rigid structure and light weight.
- Motor framed with radiant cooling fins, permits 40% (dual speed 40/20%, YSF-series 15%) duty cycle.
2. Motor Brake
- “Electro-Magnetic Brake Controller” -a unique design in its field, R.O.C.Patent No.27417 features simultaneous braking upon release of P.B. even under full load.
3. Limit Switch
- Fitted at both top and botton ends, shuts off power automatically to prevent load chain from running out.
4. Load Chain
- Grade 80 case hardened alloy steel chain.
5. Hook
- Hot forged high tensile steel, rigid and durable, 360°swivel, fitting with safety latch to assure safe lifting.
6. Hoist Bracket
- Double high-tensile alloy steel plate bracket, features rugged and durable construction.
7. Mechanical Brake
- Advanced design, assures secure braking even under overload. In conjunction with motor brake, features “DOUBLE BRAKE SYSTEM” for safety and durability in hoist operation.
8. Transformer
- Power to pendant control reduced to 24V or 48V for safer operation.
9. Magnetic Contractor
- High performance non-fuse circuit breakers allow frequent trouble cycling with free operation.
10. Phase Error Relay
- A specially designed electric board prevents motor from running at it reverse phased.
11. Push Button Pendant
- Offers light and durable switching controls.

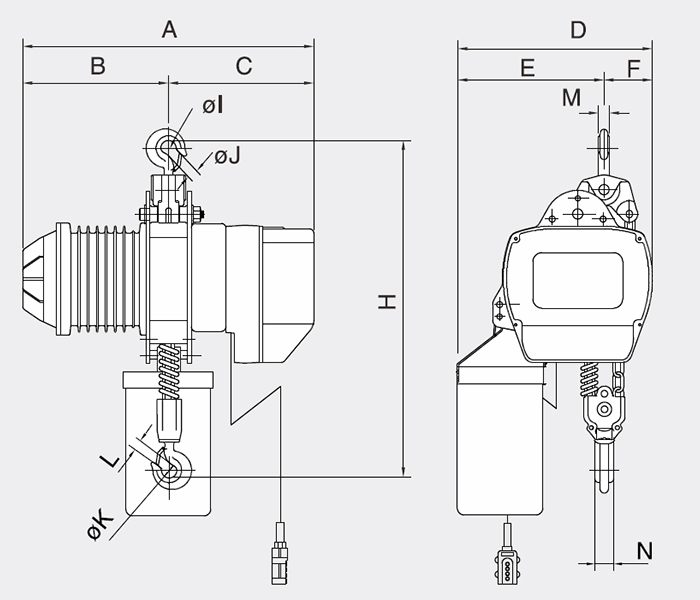

Product Specifications

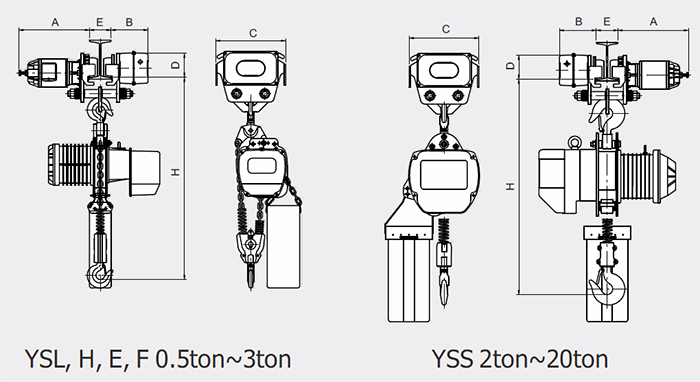

Dimensions of Hoist with Motorized Trolley

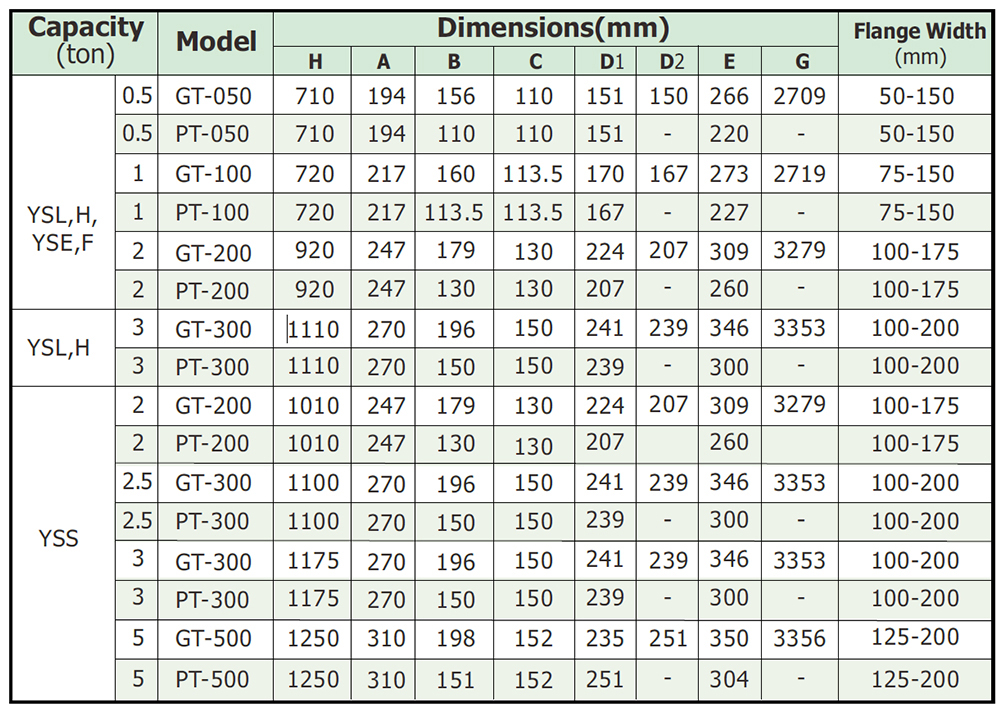

Dimensions of Hoist with GT/PT

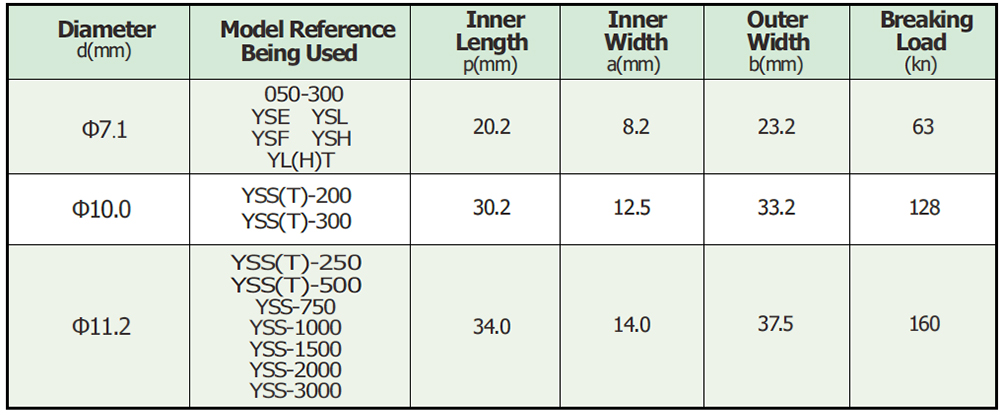

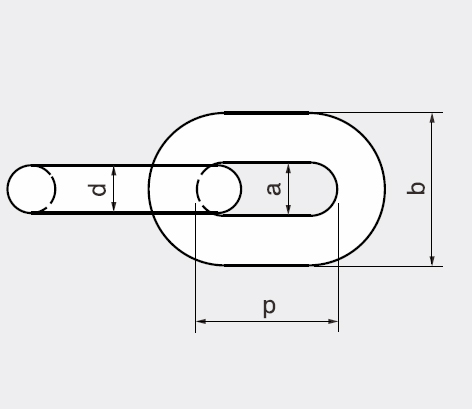

Load Chain
Hook
